Winter Ice: Faceting Design Diagram

Tourmaline (Achroite, Dravite, Rubellite, Indicolite, Verdelite, Siberite)

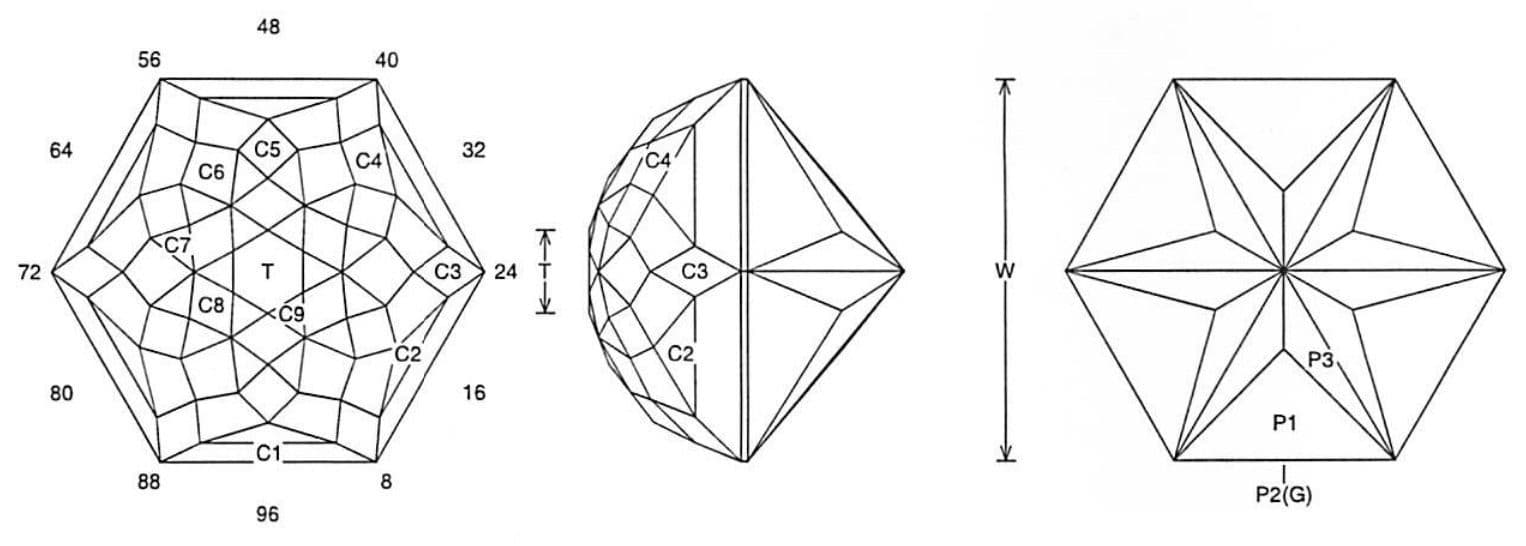

Winter Ice (DOME37.JRG)
By Jeff R. Graham
Copyright 2007
84.7% Light Return
Angles for R.I. = 1.62
85 facets + 6 facets on girdle = 91
6-fold, mirror-image symmetry
96 index
L/W = 1.155 T/W = 0.217 T/L = 0.188 P/W = 0.419 C/W = 0.404
H/W = (P+C)/W+0.02 = 0.843 P/H = 0.497 C/H = 0.479
Vol./W^3 = 0.342

PAVILION

CROWN

Addition # 13 - Cut in refractive indexes 1.62 to 2.14 with no changes. This is ideal for lightly saturated material and works well in about any material. This is not hard to cut and is very pretty.
