Swirl Dutch: Faceting Design Diagram
Helpful tips, details and guide on Faceting Designs. Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Swirl Dutch".
Tourmaline (Achroite, Dravite, Rubellite, Indicolite, Verdelite, Siberite)

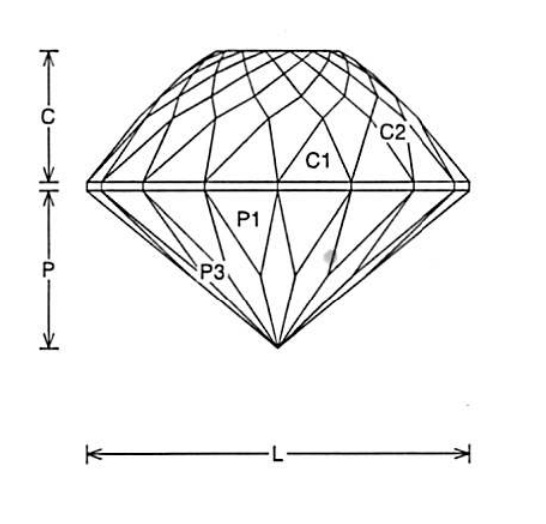

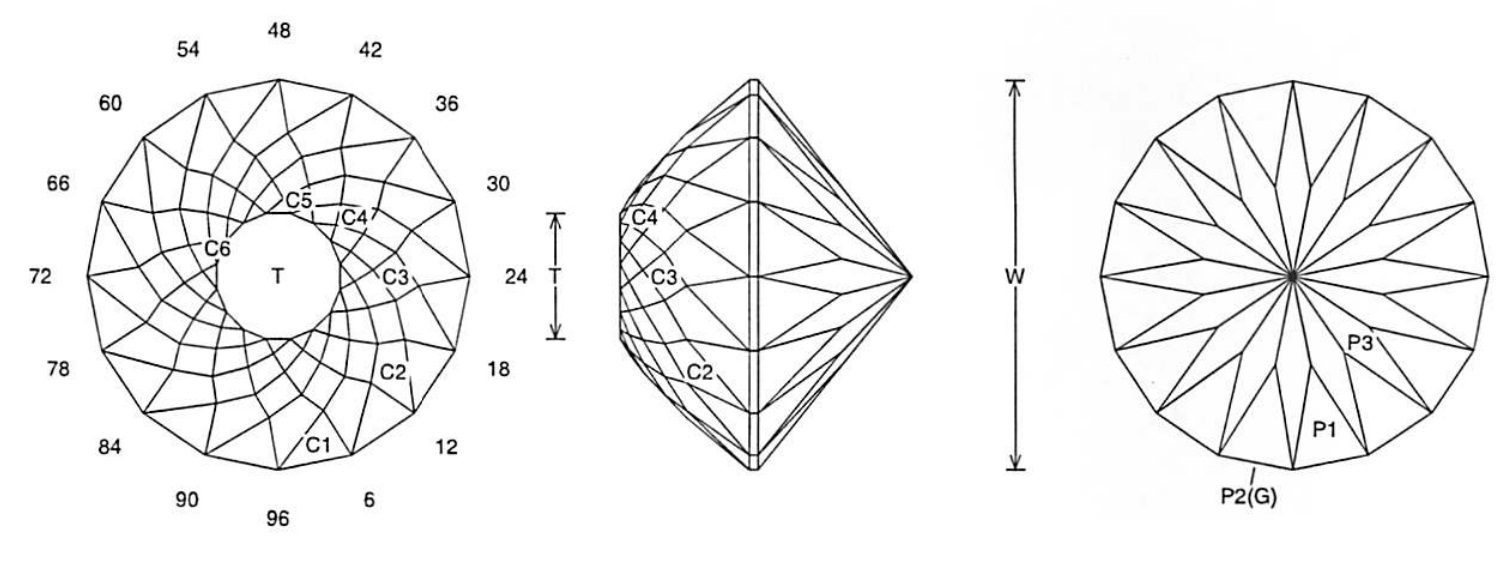

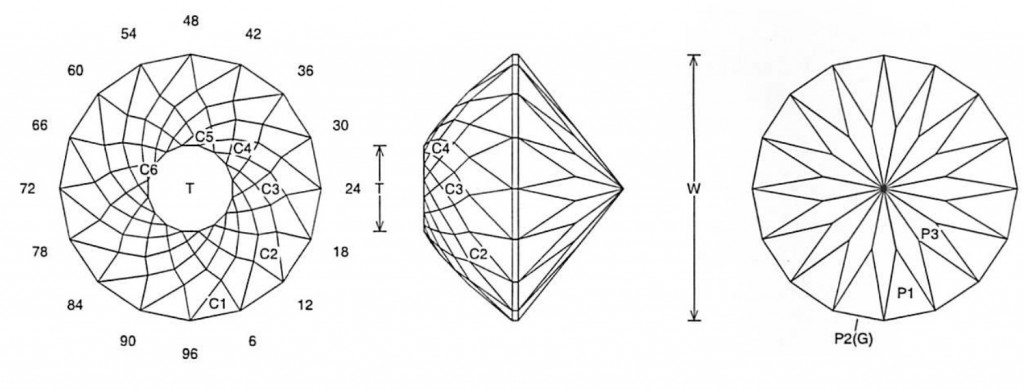

Swirl Dutch (DOME17.JRG)
By Jeff R. Graham
Copyright 2007

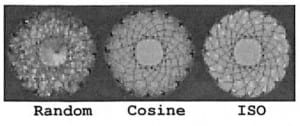

84.8% Light Return
Angles for R.I. = 1.62
129 facets + 16 facets on girdle = 145
16-fold, mirror-image symmetry
96 index
L/W = 1.000 T/W = 0.322 T/L = 0.322 P/W = 0.405 C/W = 0.336
H/W = (P+C)/W+0.02 = 0.761 P/H = 0.532 C/H = 0.441
Vol./W^3 = 0.259
PAVILION
CROWN
Addition # 13 - Cut in refractive indexes 1.62 to 1.76 with no changes. This is for lightly saturated materials and is fun to cut. It a unique look. It is not hard to cut, other than it has a lot of facets.
