Split Phenomenon: Faceting Design Diagram

Quartz (Amethyst, Citrine, Ametrine, Smokey, Rose)

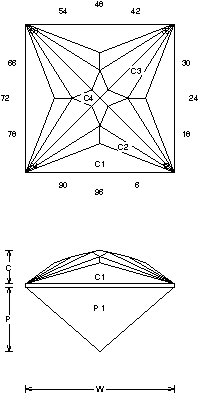

Split Phenomenon (MIR17.JRG)
By Jeff R. Graham
Copyright 2004
91.8% Light Return
Angles for R.I. = 1.54
28 facets + 4 facets on girdle = 32
4-fold, mirror-image symmetry
96 index
L/W = 1.000 P/W = 0.435 C/W = 0.226
H/W = (P+C)/W+0.02 = 0.680
P/H = 0.639 C/H = 0.332
Vol./W^3 = 0.264

Addition # 9 - Cut this in refractive indexes 1.54 to 1.93 with no changes. A table can be cut if the stone is large. This is designed for light colors and works well in about any material.

Random - Cosine - ISO

Detailed faceting instructions by Jeff Graham available at The Rock Peddler
