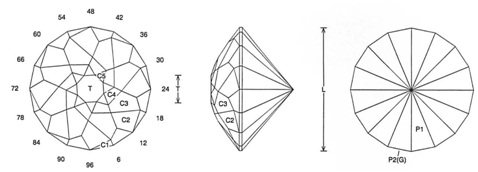

Salvation: Faceting Design Diagram

Quartz (Amethyst, Citrine, Ametrine, Smokey, Rose)

Salvation (MIR46.JRG)
By Jeff R. Graham
Copyright 2005
85.2% Light Return
Angles for R.I. = 1.54
65 facets + 16 facets on girdle = 81
8-fold symmetry
96 index
L/W = 1.000 T/W = 0.224 T/L = 0.224 P/W = 0.426
C/W = 0.234 H/W = (P+C)/W+0.02 = 0.680 P/H = 0.627 C/H = 0.344 Vol./W^3 = 0.214

PAVILION

CROWN

Addition # 10 - Cut in refractive indexes 1.54 to 1.93 with no changes. This is not hard to cut and is quite nice in light to medium saturated materials. This makes great earrings and I tend to prefer it cut in 10mm and larger sizes.

Detailed faceting instructions by Jeff Graham available at The Rock Peddler
