Online Faceting Designs & Diagrams: Patience II
Information and guide on Faceting Designs. An Online Faceting Design Diagram by Jeff R. Graham that presents various cuts, this is called "Patience II".

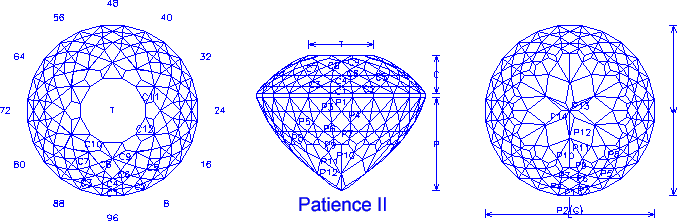

Patience II by Jeff R. Graham
Ahigher resolution graphicis available.
Patience II - Cutting Remarks
Want to see this design cut?
http://www.frengerlapidaire.com/patience2
Patience II is a design for those of you who really like to cut facets. Light to medium material is best and it is designed for a LARGE Cubic Zirconia. In spite of it's complex appearance, "Patience II" is straight forward, meet point cutting - there's just a lot of it!
Enjoy cutting your "Patience II"… Drop me an email if you get yours finished before I am too old to hear, let me know your results and what you've cut, or feel free to inquire if you have any questions or need some help regarding this design.
Random - Cosine - ISO
Detailed faceting instructions by Jeff Graham available at The Rock Peddler
