Killer: Faceting Design Diagram
Successful tips, details, and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Killer"
Quartz (Amethyst, Citrine, Ametrine, Smokey, Rose)

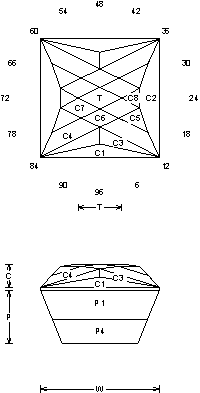

Killer (CHECK45.JRG)
By Jeff R. Graham
Copyright 2002
84.7% Light Return
Angles for R.I. = 1.54
31 facets + 4 facets on girdle = 35
2-fold, mirror-image symmetry
96 index
L/W = 1.000 T/W = 0.369
T/L = 0.369 P/W = 0.447
C/W = 0.197 H/W = (P+C)/W+0.02 = 0.664
P/H = 0.673 C/H = 0.297
Vol./W^3 = 0.336
Addition # 8 - This crown will take a little work, but the design is basically easy. Roughing in the table before cutting C8 helps establish the proportions. This works great in refractive indexes 1.54 to 2.14 with no changes.

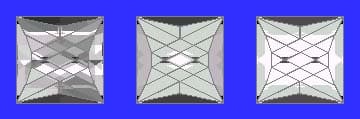

Random - Cosine - ISO
Detailed faceting instructions by Jeff Graham available at The Rock Peddler
