Hedonist: Faceting Design Diagram
Successful tips, details, and guide on Faceting Designs. Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Hedonist"
Tourmaline (Achroite, Dravite, Rubellite, Indicolite, Verdelite, Siberite)

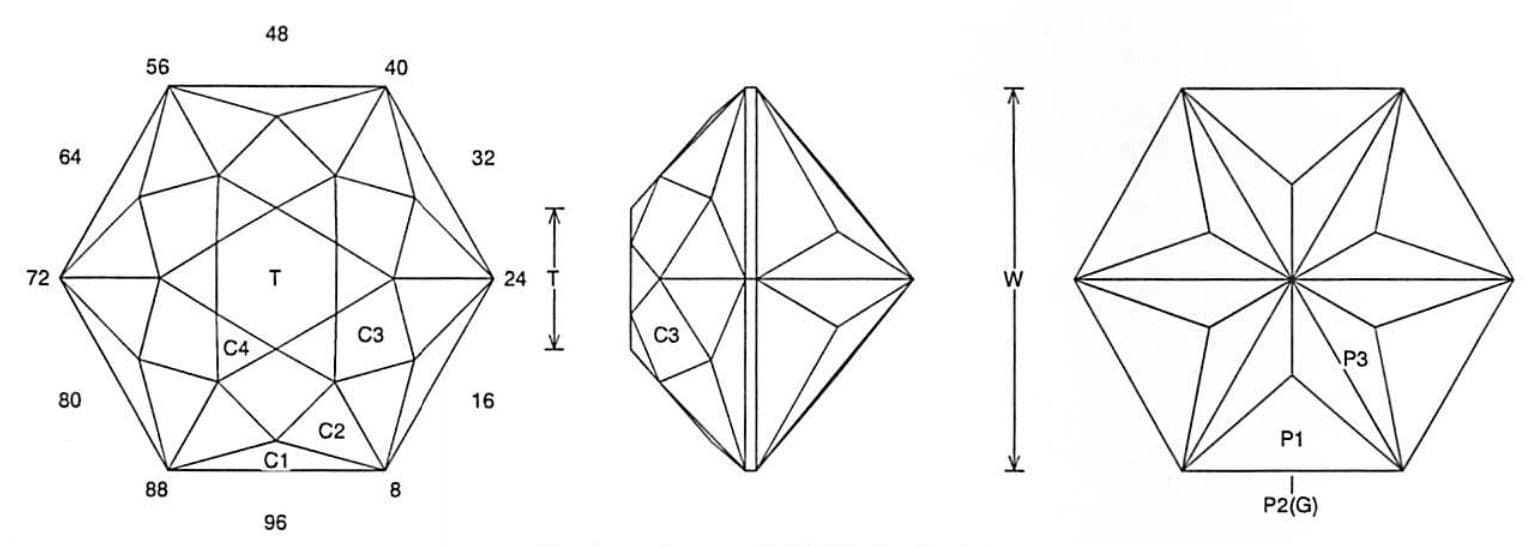

Hedonist (DOME6.JRG)
By Jeff R. Graham
Copyright 2007
70.6% Light Return
Angles for R.I. = 1.62
49 facets + 6 facets on girdle = 55
6-fold, mirror-image symmetry
96 index
L/W = 1.155 T/W = 0.368 T/L = 0.319 P/W = 0.419
C/W = 0.305 H/W = (P+C)/W+0.02 = 0.744 P/H = 0.563 C/H = 0.410 Vol./W^3 = 0.285
PAVILION
CROWN
Addition # 13 - This is designed for light colored material like pale pink. It is easy to cut and has a nice flash pattern. Cut in refractive indexes 1.62 to 2.14 with no changes.
Detailed faceting instructions by Jeff Graham available at The Rock Peddler
Jeff R. Graham
The late Jeff Graham was a prolific faceter, creator of many original faceting designs, and the author of several highly-regarded instructional faceting books such as Gram Faceting Designs.
