Daisy Bud: Faceting Design Diagram
Detailed information and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Daisy Bud"
Quartz (Amethyst, Citrine, Ametrine, Smokey, Rose)
Daisy Bud (MIR23.JRG)
By Jeff R. Graham
Copyright 2004
92.2% Light Return
Angles for R.I. = 1.54
48 facets + 12 facets on girdle = 60
4-fold, mirror-image symmetry
96 index
L/W = 1.000 P/W = 0.435 C/W = 0.200
H/W = (P+C)/W+0.02 = 0.654
P/H = 0.664 C/H = 0.305
Vol./W^3 = 0.263

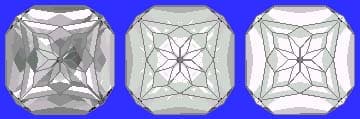

Addition # 9 - Note: The corners are designed to be variable to fit a piece of rough. Generally cut the corners to look like the diagram. This is an excellent cut in almost any material. On a large stone a table can be cut at C6. Cut in refractive indexes 1.54 to 2.14 with no changes. This is nice in Garnet like Mombo and Rhodolite.
Random - Cosine - ISO
Detailed faceting instructions by Jeff Graham available at The Rock Peddler
