Boxed Wheel 2: Faceting Design Diagram
An informational guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Boxed Wheel 2".
Garnet (Pyrope, Rhodolite, Almandine, Spessartite, Grossular, Demantoid, Tsavorite)

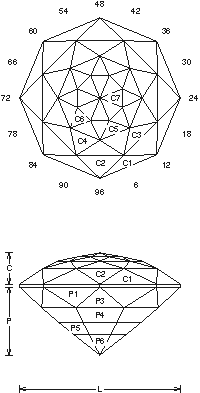

Boxed Wheel 2 (GNETP23.JRG)
By Jeff R. Graham
Copyright 1995
89.7% Light Return
Angles for R.I. = 1.73
96 facets + 8 facets on girdle = 104
8-fold, mirror-image symmetry
96 index
L/W = 1.000 P/W = 0.424 C/W = 0.194
H/W = (P+C)/W+0.02 = 0.638
P/H = 0.664 C/H = 0.304
Vol./W^3 = 0.206
Gram Book 1 - This design cuts easier than it looks. The step cuts have to be close to the diagram for the design to work. As you can see, they are pretty easy to judge because the P3 facets line them up, 2-8cts almost any material. A table can be cut to leave C7 a step on larger stones or do not cut C7 on a smaller stone and cut to meet C6. Cut in refractive indexes 1.73 to 2.14 (91.4%) with no changes.
